Controlled Atmosphere Machines

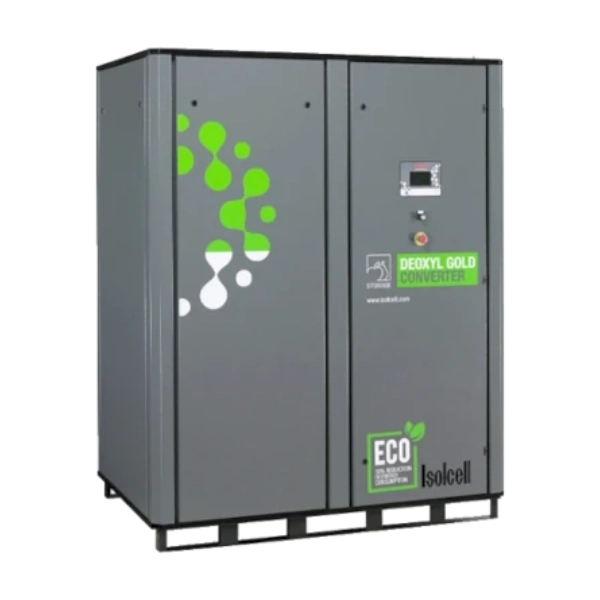

revolutionary heat recovery system that minimizes the temperature difference between incoming and outgoing air. Catalytic ethylene oxidation at 250°C High-quality catalyst with over 25 years of lifespan The catalyst’s performance remains stable even after 25 years of operation. Zero maintenance & high durability DEOXYL systems operate for decades without requiring maintenance, thanks to the quality of their components. Up to 70% energy reduction in multi-cell operation The ability to automatically deactivate the machine in inactive cells reduces energy consumption by up to 70%. The most advanced and efficient catalyst on the market Deoxyl Gold is the most modern and high-performance ethylene catalytic decomposition system available.

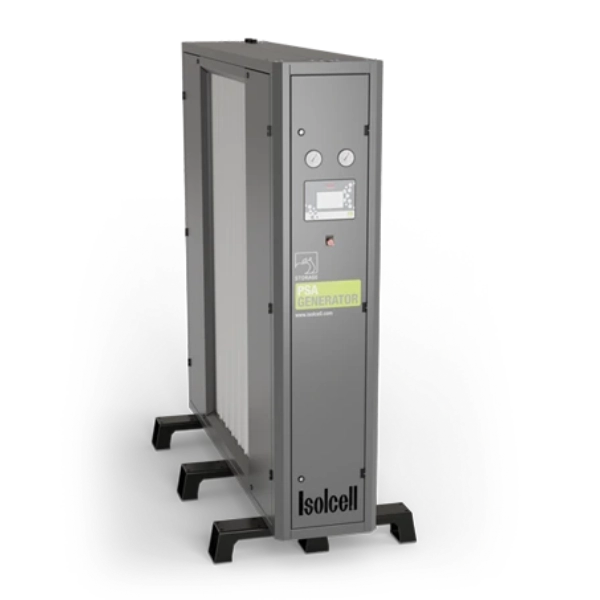

15 to 180 Nm³/h — ideal for small to medium-scale applications. Modular construction Allows future capacity expansion without equipment changes. Flexible parameter adjustment Adjustable pressure and purity without internal modifications. Ergonomic design Easy access for maintenance and control. Reliability Built with 50 years of expertise — durable and long-lasting.

storage rooms, offering reliable and accurate monitoring of CO₂ and O₂ levels. Technical Features:

• O₂ measurement: electrochemical or paramagnetic sensor, with precision up to 0.01%
• CO₂ measurement: NDIR (infrared) sensor
• Touchscreen PLC for intuitive control
• Two diaphragm pumps with alternating operation for continuous performance
• Automatic calibration of sensors
• Electronic flow meter for sampling accuracy

Additional Specifications:

• Power supply: 230 V AC – 50/60 Hz
• Dimensions: 600 × 600 × 1810 mm
• Weight: 160 kg
• Warm-up time: 5 minutes
• Connectivity: Compatible with ISOSOFT / SCADA systems for remote control and data logging

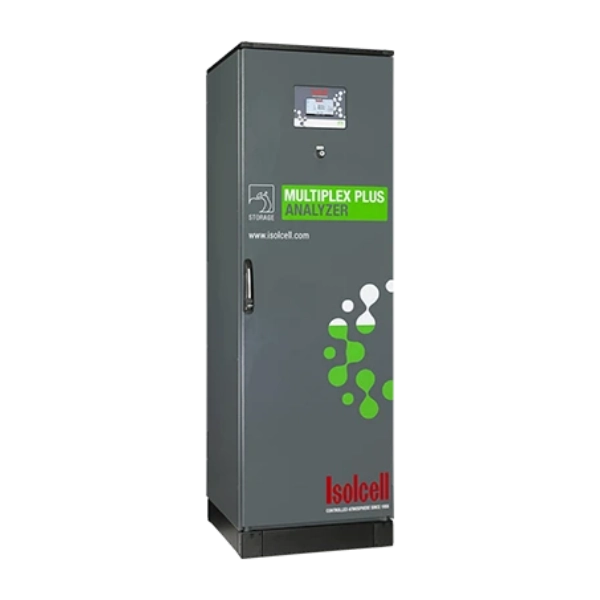

Thanks to its high precision, flexible configuration, and robust design, the MULTIPLEX Plus is an ideal solution for large-scale controlled atmosphere storage facilities.
